LYSF油水分离器/Oil water separator

  • 油污水处理器/oil water separator for oily wastewater from mechanical process
油污水处理器/oil water separator for oily wastewater from mechanical process

油污水处理器/oil water separator for oily wastewater from mechanical process

  • capacity:0.5-10t/h
  • usage:mechanical process
  • usage:emulsified oil
  • Product description: oil water separator for oily wastewater from machanical process LYSF type land oil water separator has good performance, good separator effects. It reaches at the national discharge stander of oil wa
  • INQUIRY

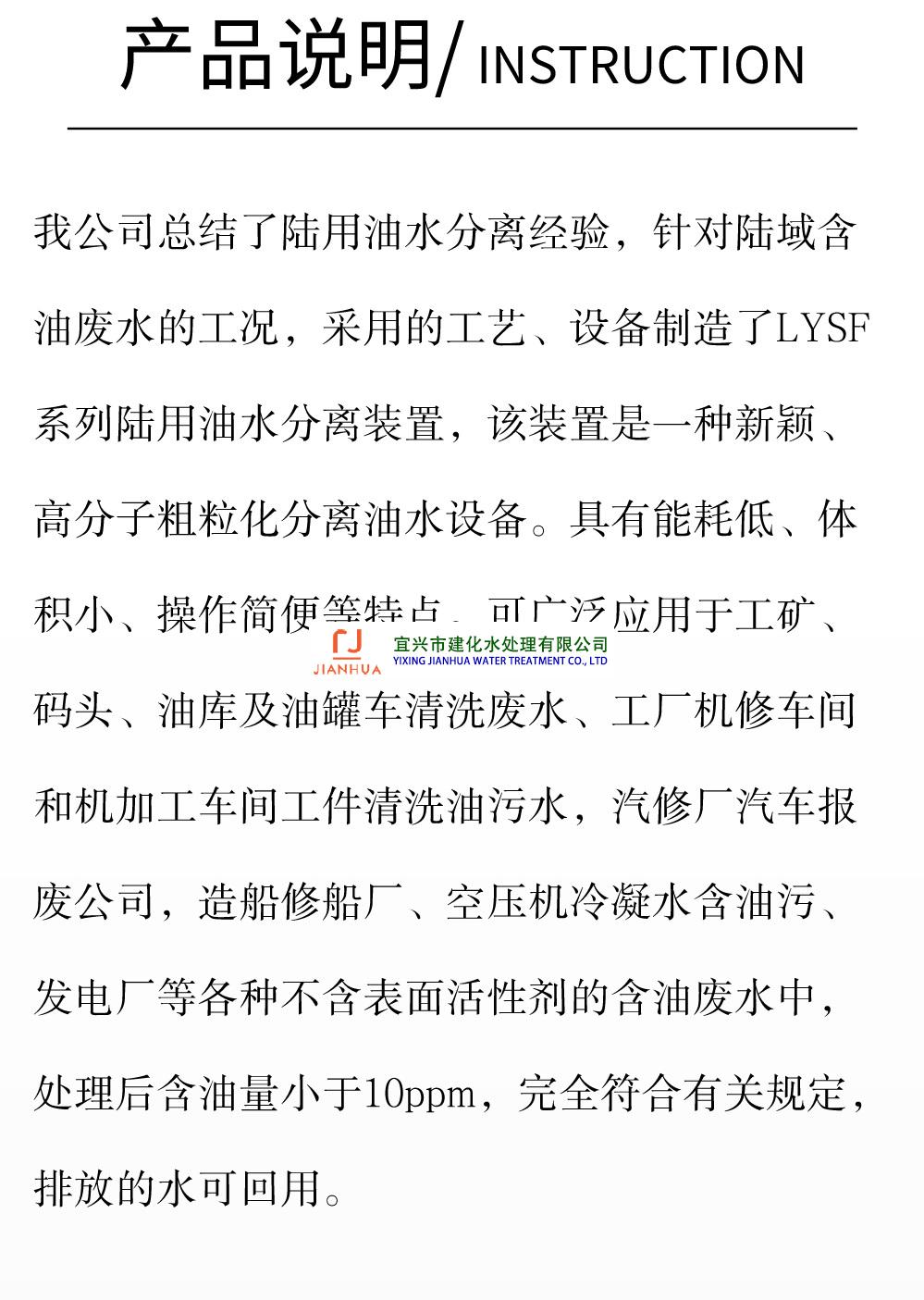

我公司总结了国内外陆用油水分离经验,针对陆域含油废水的工况,采用先进的工艺、设备制造了LYSF系列陆用油水分离装置,该装置是一种新颖、高分子粗粒化分离油水设备。具有能耗低、体积小、操作简便、效率高等特点。可广泛应用于工矿、码头、油库及油罐车清洗废水、工厂机修车间和机加工车间工件清洗油污水,汽修厂汽车报废公司,造船修船厂、空压机冷凝水含油污、发电厂等各种不含表面活性剂的含油废水中,处理后含油量小于10ppm,完全符合国家有关规定,排放的水可回用。

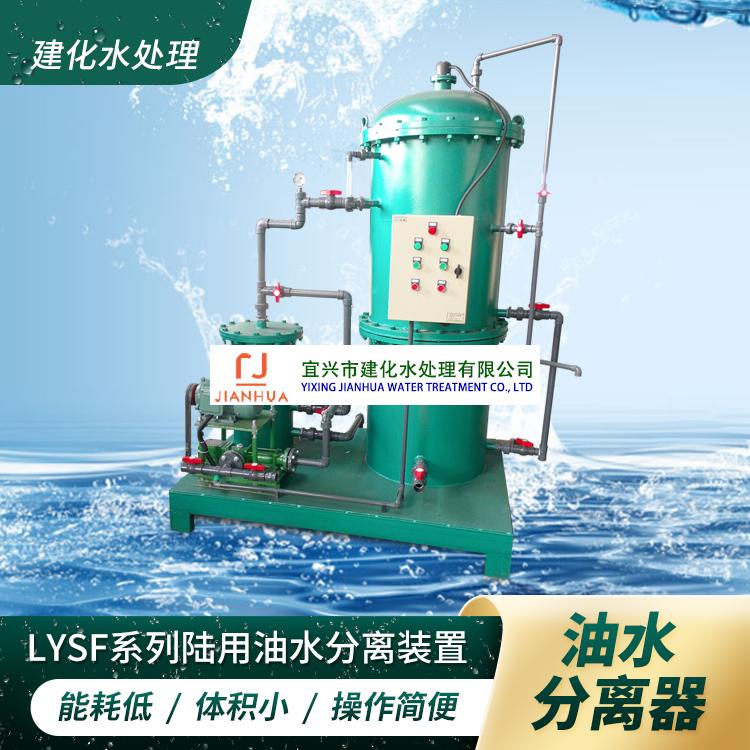

LYSF陆用油水分离器具有结构紧凑,操作简单,管理方便,分离效率高,能耗低等优点 ,处理后的水可直接排放或适当回用,提取的废油可直接回用。该装置将强化重力分离,粗粒化,吸附聚结处理工艺有机地组合成一钢质圆筒形整体结构,与输液泵、贮油槽及电控盒组合成处理装置。处理工艺充分利用重力分离特性,不同分离材质的特性因素,从而对各种处理难度较高的含油废水工况具有较广泛的适应能力,适用于不含表面活性剂的各类油品的含油废水处理。该装置将强化重力分离,粗粒化,吸附聚结处理工艺有机地组合成一钢质圆筒形整体结构,与输液泵、贮油槽及电控盒组合成处理装置。处理工艺充分利用重力分离特性,不同分离材质的特性因素,从而对各种处理难度较高的含油废水工况具有较广泛的适应能力,适用于不含表面活性剂的各类油品的含油废水处理。



oil water separator for oily wastewater from machanical process

LYSF type land oil water separator has good performance, good separator effects. It reaches at the national discharge stander of oil waste water, it controls out water’s oil content bellow 10mg/L.LYSF land oil water separator’s treatment process is gravity separation, coarse graining, adsorption coalescence. It is made of carton steel cylinder, pump, oil tank, electronic controller. Through gravity separation, different material’s character ,it can treat manyl kinds of oil waste water which is difficult to treat, And has wide usage ,such as engine oil, machine oil, diesel oil,petrol, lubricant, animal and vegetable oils, and some heavy oil etc. it has compact structure, operation is simple, manager is convenient, separation effect is high, power consumption is low, the treated water can be discharged directly, and the waste oil can be reused. It has good technical economical benefit in save water, save energy ,environment protection, it is a ideal equipment in treating land oil waste water.

Technical parameter

type

list

LYSF0.5

LYSF1

LYSF2

LYSF5

LYSF10

Rating capacity t/h

0.5

1

2

5

10

In water’s oil content

5×104mg/l

1000mg/l

Out water’s oil content

10mg/l

Discharge oil way

Manual or automatic

Heating type

Electric heating or steam heating

run pressure

0.1~0.2MPa

Run temperature

20~40

size

1500×700×1800

1600×800×1800

1800×900×1850

2200×1200×2150

3000×1700×2550

In water pipe size

Dg25

Dg32

Dg40

Dg50

Dg65

In water pipe highth

150

150

150

160

180

Out water pipe highth

150

150

150

160

700

In water’s suspended solid content

150mg/l

In tape water pipe size

Dg25

Dg32

Dg40

Dg50

Dg50

Pump power kw

1.1

1.1

1.5

2.2

5.5
