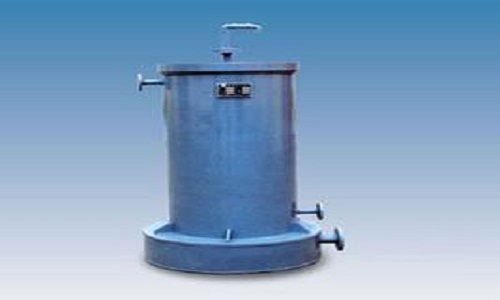

PVC/PP酸雾吸收器/gas absorber tower for waste gas absorb

酸雾吸收器

酸雾吸收器(酸雾净化塔,酸雾吸收塔,酸雾净化器)，是适合于多种有害废气的治理设备。它不仅适用范围广，而且净化效率高(h>95%),设备阻力低(400-600pa)运行费用低，凡在使用本设备的场合，都达到国家排放标准。

适用范围

酸性气体:硫酸，盐酸，硝酸，氢氟酸等;

碱性气体:氢氧化钠，氢氧化钾，氨气等;

有机气体:苯类，醇类，酚类等。治理不同的有害气体采用不同的吸收液。

工作原理

废气净化塔(酸雾净化塔,酸雾吸收塔,酸雾净化器)由塔体，液箱，喷雾系统、填料，气液分离器等构成，根据介质不同，可选用PVC、PP、玻璃钢、碳钢、不锈钢制造。废气由下部进风口进入塔体，然后通过填料层和喷雾装置使废气被液净化，净化后的气体再经气液分离器，由通风机排至大气，喷雾系统采用了美国HHSJ型喷头，雾化效果好，从而具有突出的净化效果。

1.instruction

HCL is a kind of strong volatile liquid , sour gas will corrode equipment and building, also have bad effect for people health. Acid moisture absorber tower (waste gas absorber) will absorb discharged gas from storage tank or dosing tank, with water spraying packing, it can stop acid mist polluting the environment.

2.technical character

Designed pressure ＜0.1 MPa

Designed temperature:40C

Packing height: see sheet

3.main technical sheet

4.install instruction

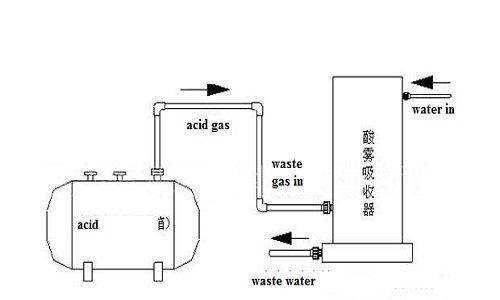

Acid moisture absorber ‘s inlet connects with acid storage tank (dosing tank)’s outlet through anti-corrosion pipe. acide moisture is absorbed from downside of absorber, water is in from absorber upside and keep flow, waste water is discharged to neutralization tank..

when begin to use, first open inlet valve and outlet valve, when water is out, then open acid mist inlet valve.
