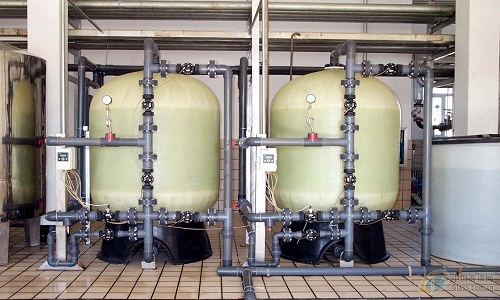

全自动软化器/Automatic water softener

全自动软化水 软化水设备是由全自动软水控制器（美国FLECK富莱克、AUTOTROL阿图祖控制器）、树脂罐（一般为玻璃钢树脂罐和不锈钢树脂罐）、强酸型钠离子阳树脂、盐箱组成整机。同时我公司提供维修全自动软水器的技术支持，齐全的全自动软水器配件供应。全自动软化水设备具有体积小、操作简单、自动运行无须人工操作等特点，已广泛应用于工业锅炉、冷却循环水、炼钢、轧钢、大型变压器、民用热水锅炉等场合。
一、全自动软化水设备的标准工作流程主要包括：
      工作(有时叫做产水，下同)、反洗、吸盐(再生)、慢冲洗(置换)、快冲洗五个过程。不同软化水设备的所有工序非常接近，只是由于实际工艺的不同或控制的需要，可能会有一些附加的流程。任何以钠离子交换为基础的软化水设备都是在这五个流程的基础上发展来的(其中，全自动软化水设备会增加盐水重注过程)。
二、全自动软水器性能特点：
      全自动软水器可分为时间控制型、流量控制型，连续供软水系统型多种系列，有单阀单罐、单阀双罐、双阀双罐并联、大型多阀多罐串联等多种组合形式，满足用户不同用水需求。流量型是所设定的流量控制全自动再生，流量大小可根据树脂装填量及水质情况的不同自行设定。时间型是根据树脂装填量及水质情况结合每小时具体需求量换算时间，由设定时间控制全自动再生（7天或12天范围内根据需要设定再生周期，24小时内任意选择再生时间）。全自动软水设备控制系统技术成型、操作简便、运行可靠、微电脑控制，使其操作更加简便，管理更容易。
1.自动化程度高，运行工况稳定。
2.先进程序控制装置，运行准确可靠，替代手工操作，完全实现水处理的各个环节的自动转换。
3.高效率低能耗，运行费用经济。由于软化器整体设计合理，使树脂的交换能力得以充分发挥，设备采用射流式吸盐，替代盐泵，降低了能耗。
4.设备结构紧凑，占地面积小，节省了基建投资，安装、调试，使用简便易行，运行部件性能稳定。

Automatic water softener

Automatic water softener is composed of automatic controller ( America FLECK,AUTOTROL controller),resin tank(FRP tank or stainless steel tank),strong acid type Na ion resin. brine tank. Whole system has small size, operation is simple, automatic run without worker. It is widely used in industrial boiler, the circulated cooling water,steel making,steel rolling, large power transformer ,resident boiler.

1.automatic water softener work flow

Run ,backwash, filling salt(regeneration),slow wash(exchange),fast wash .different water softener has almost same process, according to different process or control, it may add some other processes. based on Na ion exchange, any water softener is almost developed from these five processes.

2.specification

Automatic water softener has time control and flow control, continual supply soften water system has many types, such as single valve and single tank, single valve and double tank, double valve and double tanks, large multi-valve and multi-tanks, it satisfies with different customer’s requirement. Automatic water softener has mature technology,operation is smiple,run is stable, PLC control,manage is very easy.

3.technical parameter

power：220V/50Hz

rate of power：10-35W
productivity(one set)：0-50m3/h
working pressure：0.2-0.5MPa

`working temperature:2-50℃
inflow water’s hardness：≤8mmol/L
outflow water’s hardness≤0.03mmol/L

operation process: automatic control

valve material: high-strength plastic or the lead-free copper alloy

tank material: FRP or stainless steel
control type: time control, flow control,

install tpe:single tank or multi tanks

regeneration type: down flow or counter flow

connector: pipe thread or ABS flange

ion resin: strong acid type Na ion resin

water cost of regeneration: ≤2% output wate

cost of salt: ≤160g/l

install condition: no need of base, common even concrete floor, arrange a drain beside equipment 1meter,

4.main technical parameter
